EP Simulator: Numerical Simulation of Fluid Flow in a Cavity

INSA Project - 1st Year Energy and Propulsion Department (~6 months)
Date: 1st Semester 2023

Overview

This project, completed during my 1st year in the Energy and Propulsion department, involved developing a simulation tool for studying fluid flow in a 2D driven cavity at Re=1. The system solves the incompressible Navier-Stokes equations using Modern Fortran, with an interactive user interface built in ElectronJS for controlling simulations and visualizing results.

Key Features

• Numerical Solver: Incompressible Navier-Stokes equations solved using finite difference methods with a uniform mesh.
• User Interface: ElectronJS-based app for setting up simulations, editing parameters, and displaying real-time results via dynamic Plotly visualizations.
• Comparison with OPENFOAM: Results were validated by comparing velocity profiles with those from the industry-standard solver OPENFOAM.

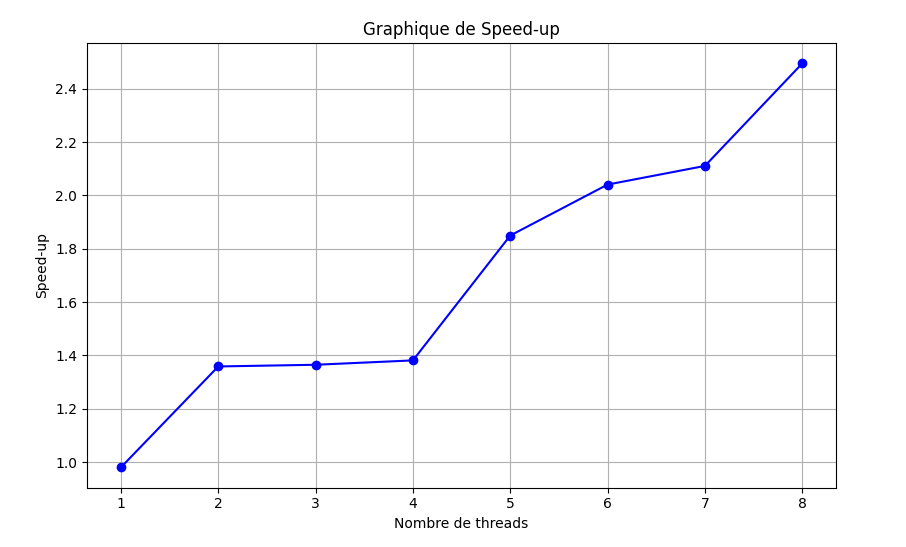

• Parallelization: Performance optimized through multithreading, reducing computation time significantly.
• Platform Compatibility: Cross-platform deployment (Windows, Linux) using Electron Forge.

GitHub Repository

Technologies Used

Frontend

Name	Badge	Purpose
ElectronJS		Frontend framework for building the user interface and application navigation
HTML5		Markup language for structuring the user interface
CSS3		Styling language for customizing the user interface
Markdown		Lightweight markup language for writing documentation
JavaScript		Programming language for building the ElectronJS frontend
Plotly		Visualization library used to generate dynamic graphs for results

Backend

Name	Badge	Purpose
Fortran		Backend for CFD simulations, solving Navier-Stokes equations
Python		Backend for executing Fortran simulations, file handling, and data processing
FastAPI		Python web framework to handle communication between the frontend and backend

Reporting

Technology	Badge	Purpose
LaTeX		Typesetting system for mathematical equations and scientific writing
Overleaf		Online LaTeX editor for collaborative writing

Showcase

Here are some key visuals from the project, including simulation results, the interface, and performance graphs.

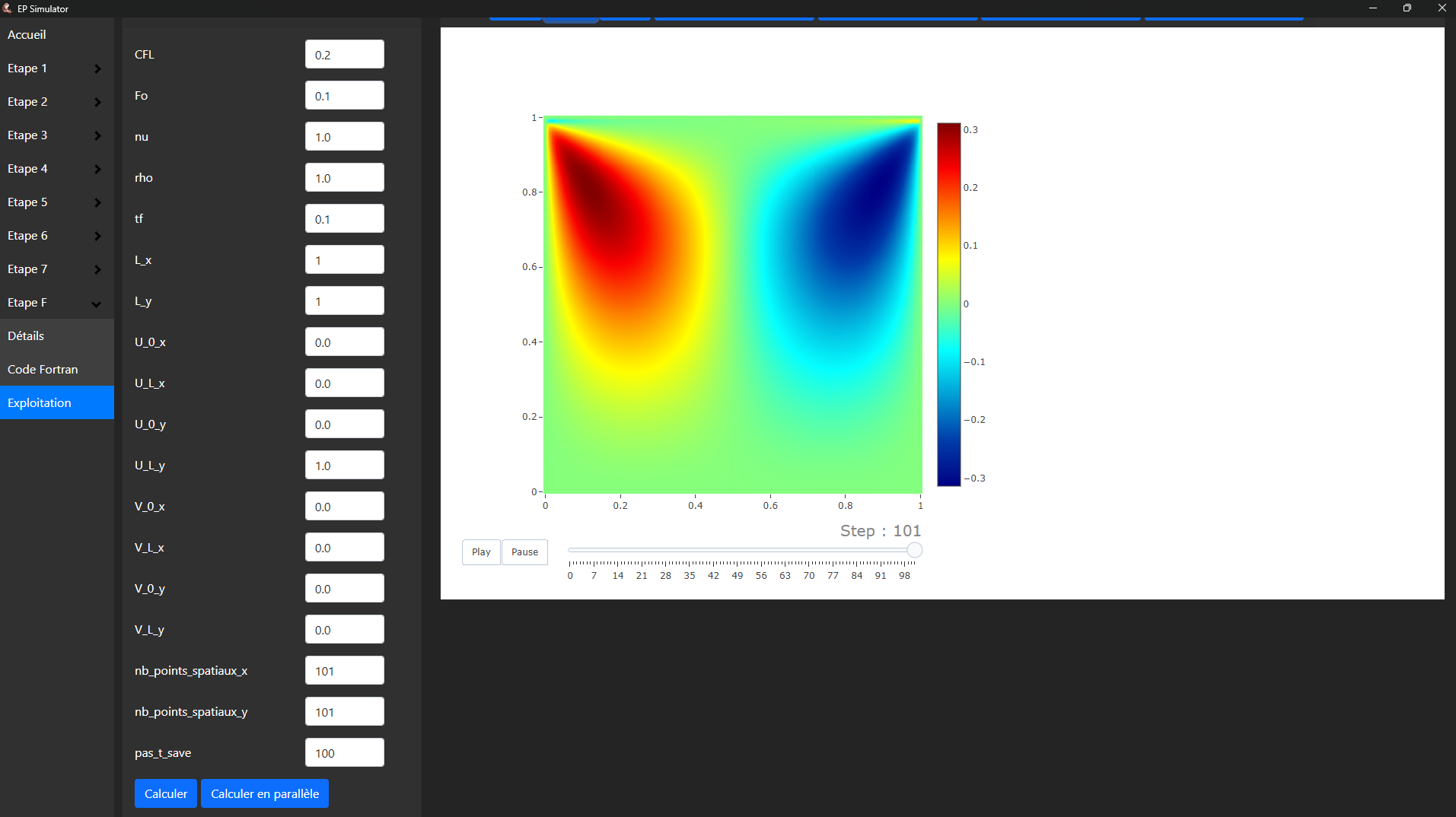

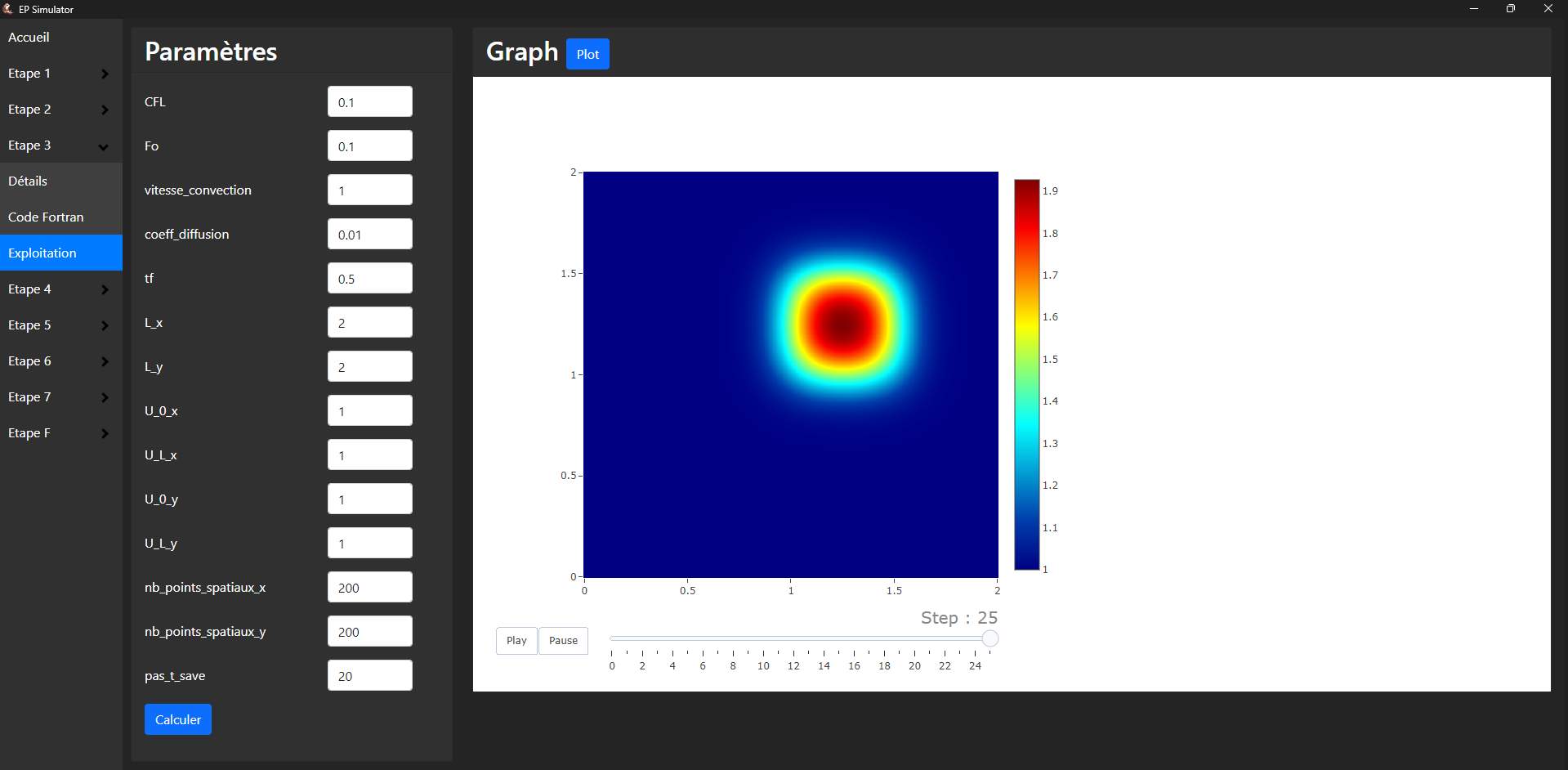

Interface overview

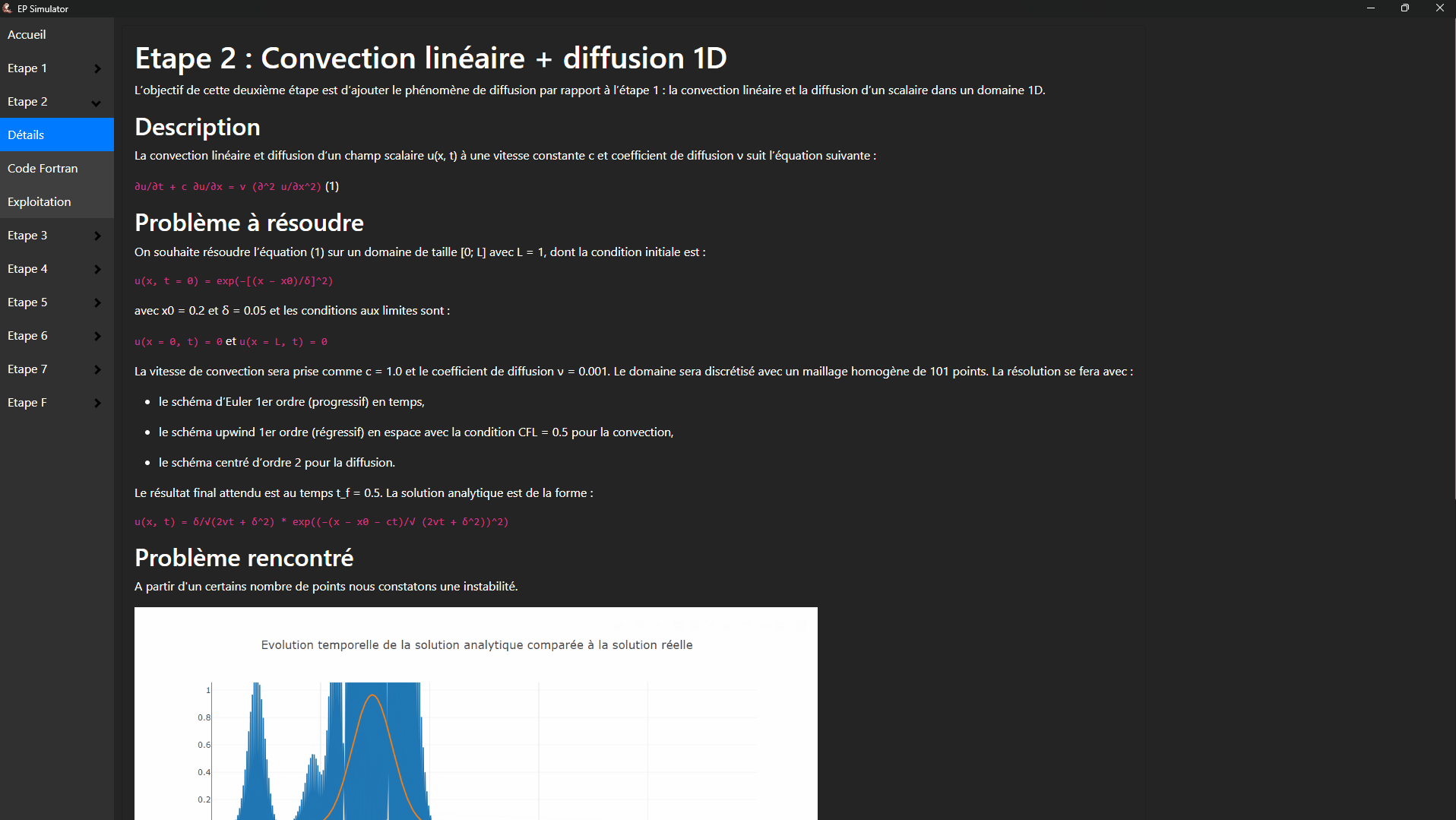

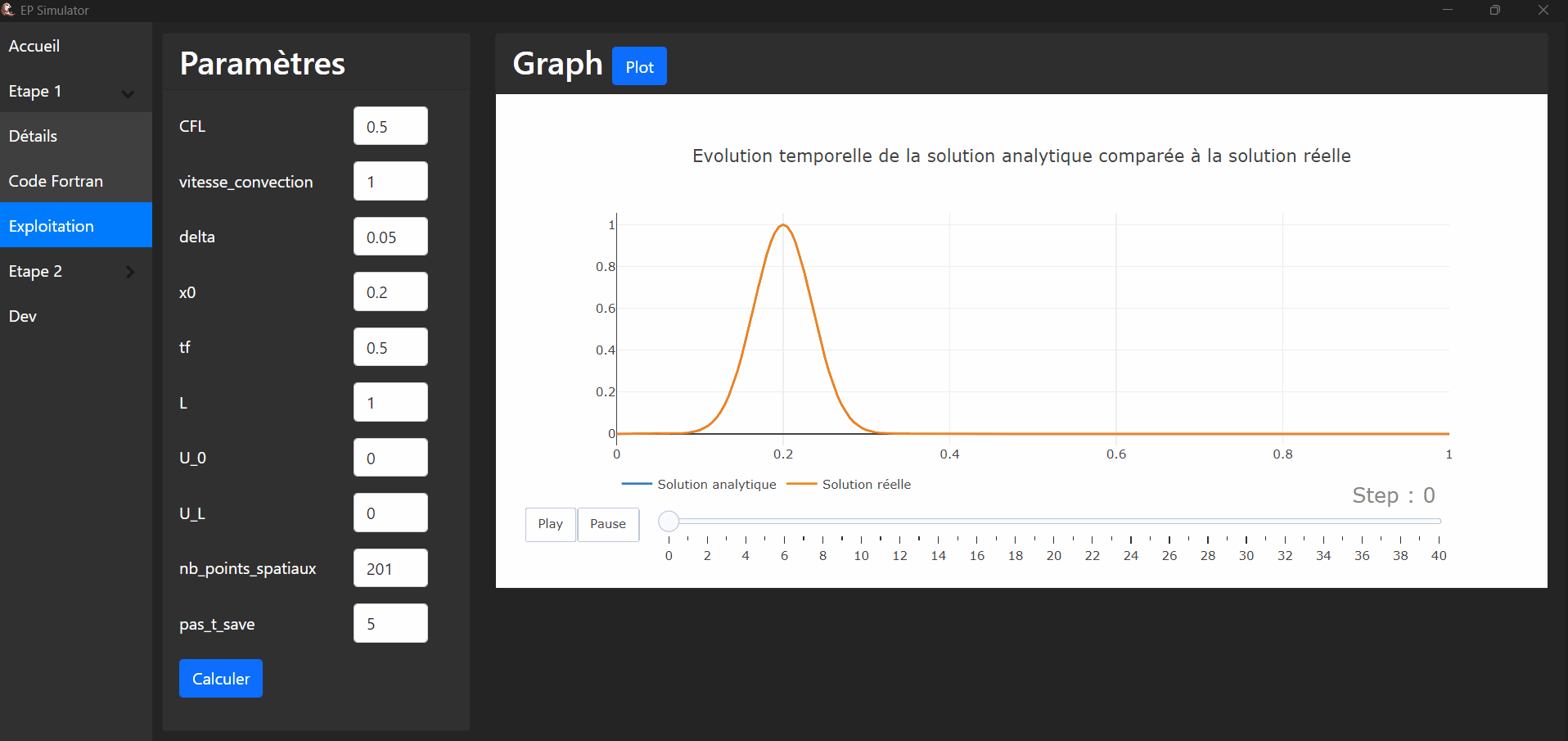

Description of every step of the project. It includes the objectives, the methodology, the results, and the conclusions. Dynamic 1D Plotly Graph for real-time results visualization.

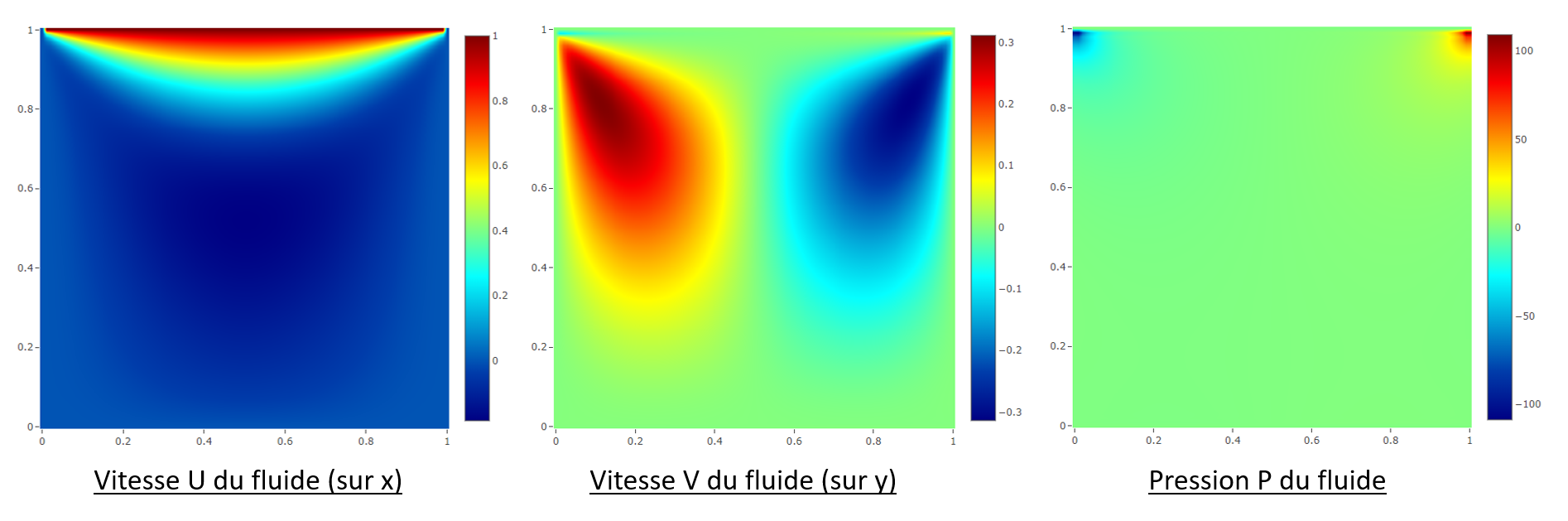

Final Results of the Simulation

This image shows the final results of the simulation. It includes the velocity field, the pressure field, and the streamlines.
